State-of-the-Art Automatic Auger Filling Architecture: Precision Volumetric vs. Gravimetric Dosing

In modern B2B powder packaging operations, achieving high volumetric efficiency while eliminating costly product giveaway (overfill) represents the ultimate engineering milestone. An automatic auger filler packaging line is a specialized electromechanical system designed to dose non-free-flowing powders (such as infant milk formula, protein powders, pharmaceutical APIs, and chili spices) as well as free-flowing granular solids (such as sugar, fine seeds, and chemical reagents). As leading manufacturers and global suppliers certified under CE and ISO standards, our production lines bridge the gap between high-speed mechanical throughput and sub-gram dosing accuracy.

1. Mechanical Drive Kinetics & Servo-Actuated Screw Geometry

At the core of an advanced auger filler lies the vertical auger screw. Driven by direct-drive brushless AC servo motors (supplied by industry leaders like Siemens or Schneider Electric), the rotational angle of the auger screw determines the exact displacement volume of the product contained within the flighting. Older clutch-brake mechanisms exhibited angular overshoot due to mechanical inertia. In contrast, modern digital servo-drives control rotation to fractions of a degree ( resolution < 0.036°).

Furthermore, the geometry of the auger flighting—incorporating straight, tapered, or overhung flights—is tailored to the rheological behavior of the specific powder. Non-free-flowing powders require spinner discs or anti-drip cut-off valves (pneumatic flap valves or iris diaphragms) to prevent dribble after the motor decelerates to zero RPM.

2. Dust Containment, CIP/SIP Sanitary Design, and ATEX Safety

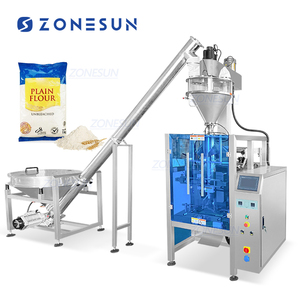

Dust generation is one of the primary operational challenges during micro-dosing and high-speed powder packaging. Aerosolized dust causes heat-seal contamination in vertical form-fill-seal (VFFS) sachets, leading to channel leaks and shortened shelf life. Our CE-certified auger filler packaging lines feature sealed, dust-tight product hoppers equipped with negative-pressure vacuum extraction ports. During the filling phase, localized dust shrouds seal directly against the container mouth (bottle neck or film funnel), evacuating displaced air through HEPA filtration channels.

For sanitary applications—such as pharmaceutical dry powders, infant nutrition, and nutraceutical supplements—the packaging line is constructed using cGMP-compliant AISI 316L stainless steel. All contact surfaces are polished to a surface roughness of Ra < 0.4 μm, eliminating microscopic pits where bacteria or residual powder could accumulate. Quick-release hopper clamps allow complete tool-less disassembly for Clean-in-Place (CIP) and Sterilize-in-Place (SIP) routines within minutes, drastically reducing batch changeover downtime.

When handling combustible organic powders (e.g., starch, flour, fine sugar, or sulfur chemical agents), our lines can be engineered to comply with ATEX Directive 2014/34/EU. Flameproof motors, explosion-vented hoppers, anti-static plastic contact parts, and intrinsic safety barriers prevent electrostatic discharge from igniting dust-cloud environments.
